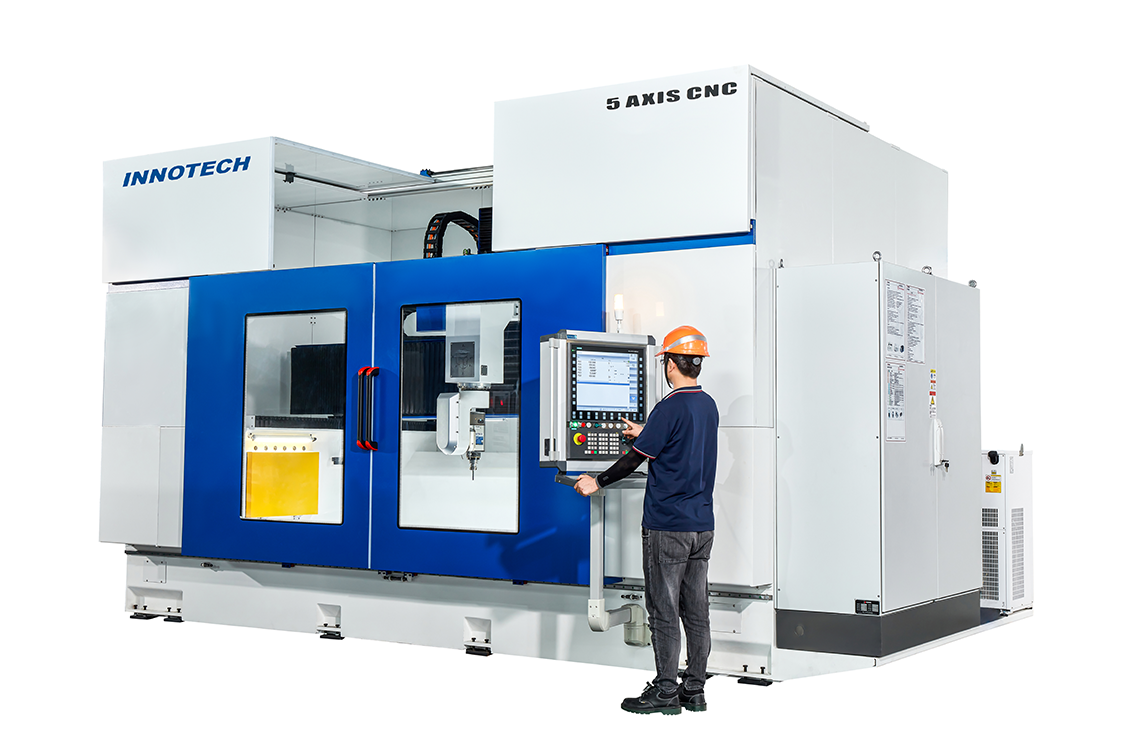

- 動梁式五軸

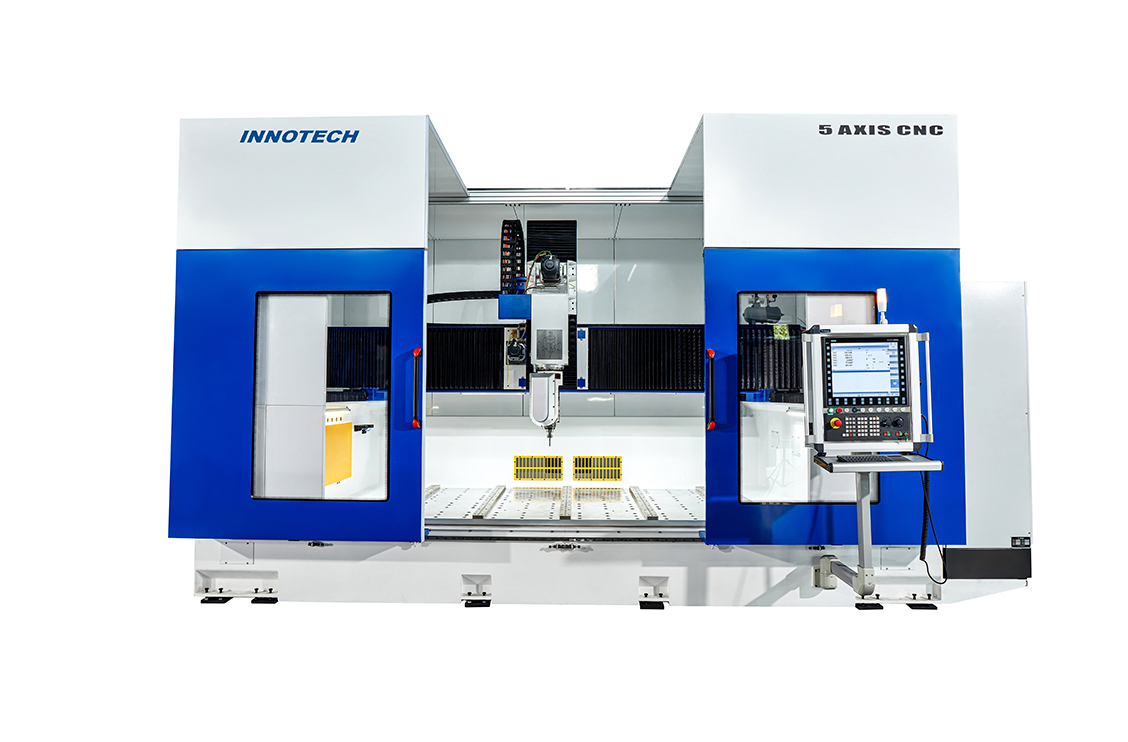

動梁式龍門加工中心采用梁式結構,即橫梁平行于工作臺,立柱固定在床身上,具有高剛性和穩定性、大工作臺容量、多軸操作能力、高速度的特點,適用于大型工件的加工行業。
■

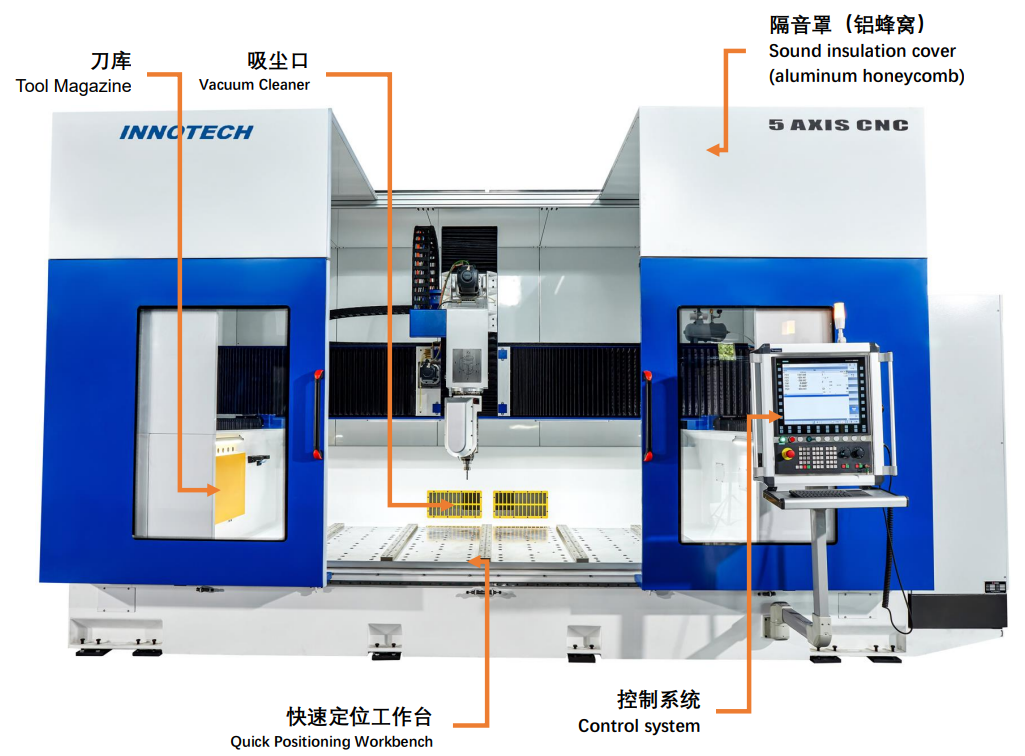

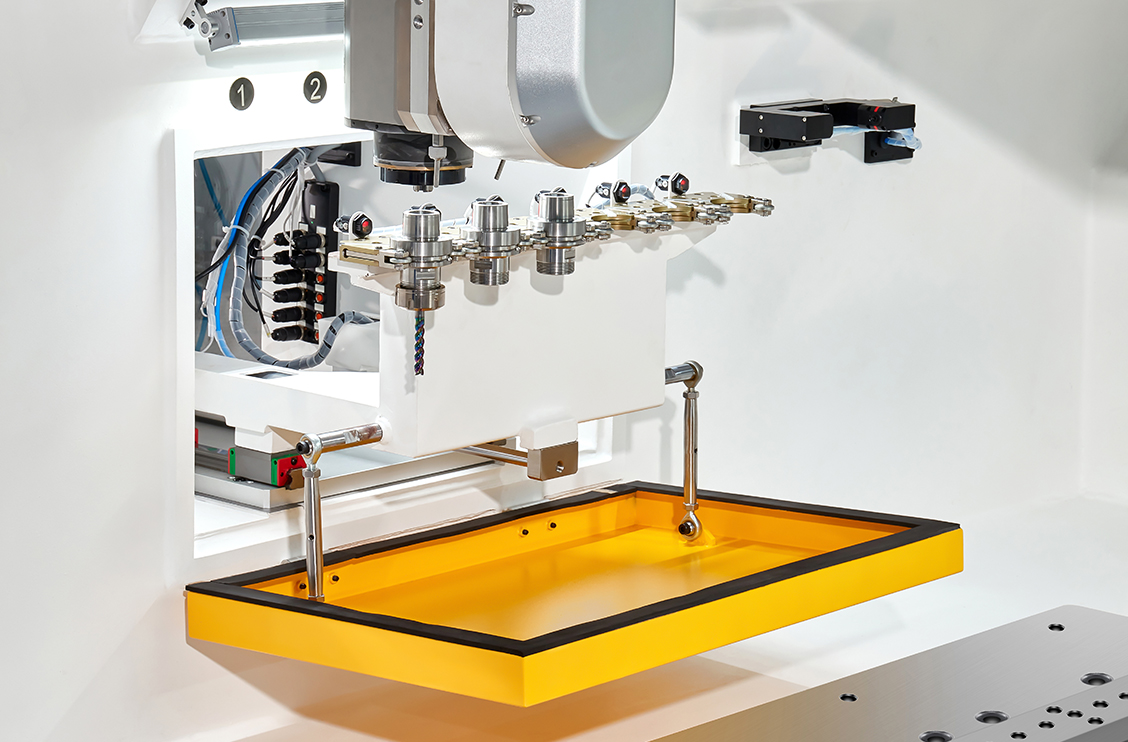

開頂式設計,方便工裝夾具裝卸;
Two worktables, efficiency increased by 50%.Open top design, convenient for loading and unloading of f ixtures;
■ 物理隔離加工區域,安全性高;
Protective cover, effectively avoiding dust and noise pol lution;
■
防護罩有效避免粉塵、噪音污染;
Protective cover, effectively avoiding dust and noise pol lution;
■

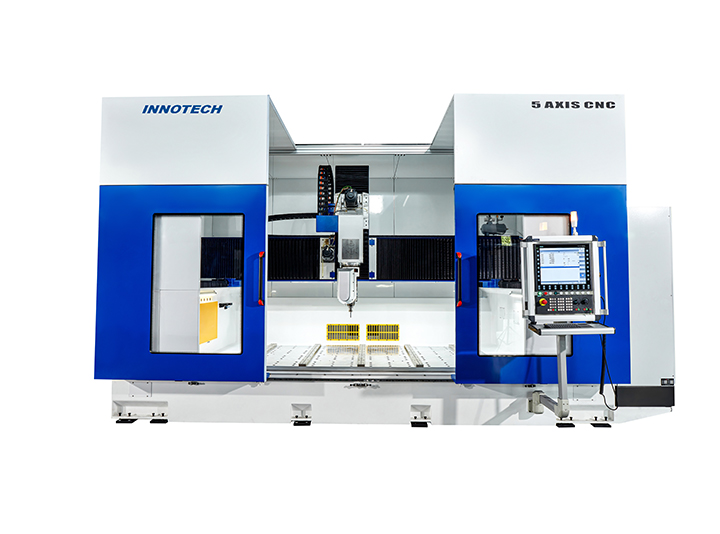

整體式結構,保證機床穩定性;
Integrated structure ensures the stability of the machine tool ;
技術參數Parameter
|
B2-302010D
|
可選Optional
|
|
行程/Stroke
|
X
|
3000mm
|
2500mm~4000mm
|
Y
|
2000mm
|
1000mm~2500mm
|
Z
|
1000mm
|
500mm~1200mm
|
A/C
|
±120°/±540°
|
-
|
工作臺 Worktable
|
承重loading
|
1000kg
|
1000-3000kg
|
尺寸Size
|
3000mm*2000mm
|
-
|
快移速度 GO Speed
|
X/Y
|
40m/min
|
40~80m/min
|
Z
|
30m/min
|
20~40m/min
|
AC
|
30rpm
|
30~60rpm
|
主軸 Spindle
|
功率Power
|
17KW
|
4.6~35KW
|
轉速Speed
|
24000rpm
|
24000~36000rpm
|
配置 Configuration
|
數控系統Control System
|
西門子Siemens
|
錸鈉克Lynuc
|
伺服系統Servo System
|
西門子Siemens
|
安川Yaskawa
|
線導軌 Linear Guide
|
力士樂Rexroth
|
-
|
傳動系統Drive System
|
阿爾法Alpha
|
-
|
