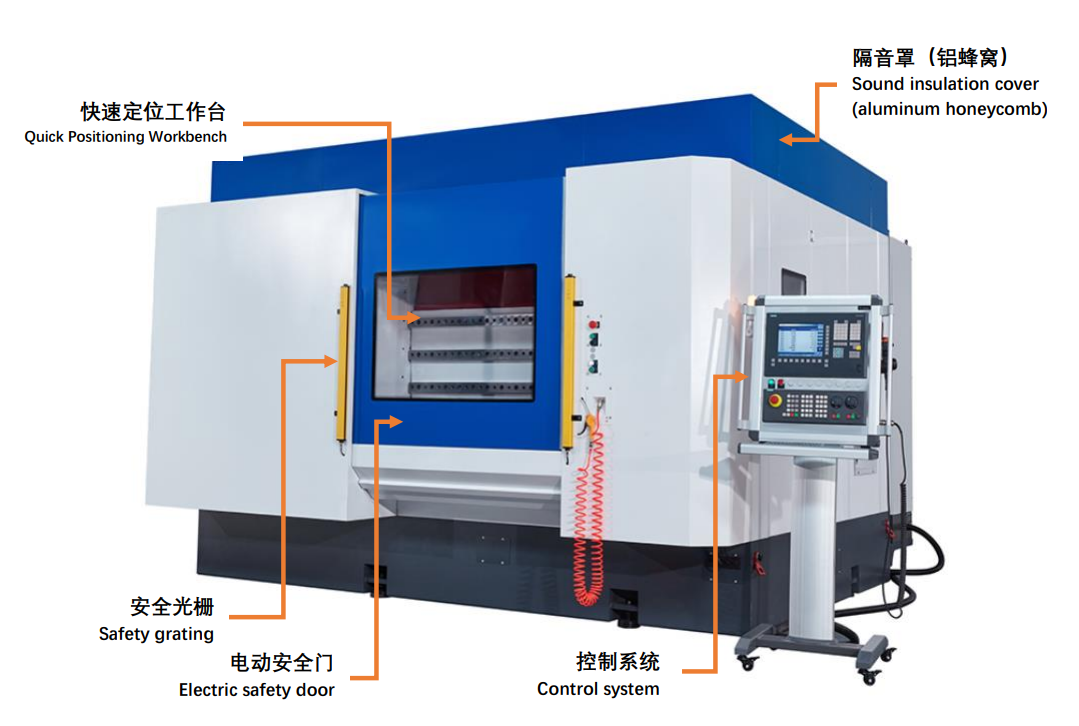

加工區、上料區獨立， 安全性高;
Working and loading area are separate - higher-safety.
■ 接口豐富，兼容各類工裝；
Variety interface, compatible with all kinds of fixture.
■
吸音罩降低生產噪音
Sound ins ulaion cover reduces noise.
|
技術參數Parameter
|
VMC1810
|
可選Optional
|
|
|
行程/Stroke
|
|
X
|
1800mm
|
1000mm~3000mm
|
|
Y
|
1000mm
|
1000mm~2000mm
|
|
Z
|
600mm
|
500mm~1000mm
|
|
A/C
|
±120°/±540°
|
-
|
|
工作臺 Worktable
|
|
承重loading
|
200kg
|
200-500kg
|
|
尺寸Size
|
1300mm*500mm
|
-
|
|
快移速度 GO Speed
|
|
X/Y
|
60m/min
|
40~80m/min
|
|
Z
|
40m/min
|
20~40m/min
|
|
AC
|
30rpm
|
30~60rpm
|
|
主軸 Spindle
|
|
功率Power
|
9KW
|
4.6~17KW
|
|
轉速Speed
|
36000rpm
|
24000~40000rpm
|
|
配置 Configuration
|
|
數控系統Control System
|
西門子Siemens
|
錸鈉克Lynuc
|
|
伺服系統Servo System
|
西門子Siemens
|
安川Yaskawa
|
|
線導軌 Linear Guide
|
力士樂Rexroth
|
-
|
|
傳動系統Drive System
|
阿爾法Alpha
|
-
|
